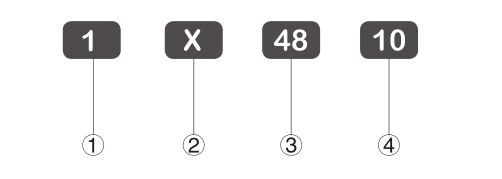

◎ 型號含義 Type meaning
① 單相 Single phase
② 袖珍型 Mini
③ 負載電壓 480VAC Load voltage 480VAC
④ 5A, 10A
◎ 產品概述 Product overview
◆ 額定電流：5A-10Amps
◆ 額定電壓：480VAC
◆ 控制電壓：3-32VDC
◆ 控制電流：≤ 10mA
◆ 背靠背 SCR 輸出適合商業級重工業級應用，性能可靠
◆ " 超低 " 的輸入電流
◆ 低輸出斷態漏電流
◆ 低輸出通態壓降
◆ 具有 LED 燈輸出指示
◆ 包含標準輸出的 R-C 緩沖器
◆ Rated current: 5A-10Amps
◆ Rated voltage: 480VAC
◆ Control voltage: 3-32VDC
◆ Control current: ≤ 10mA
◆ Reverse-parallel SCR as the output component can be used in commercial or heavy industrial applications with reliable performance
◆ "Ultra low" input current
◆ Low output off-state leakage current
◆ Low output on-state voltage drop
◆ Display output status via LED
◆ Standard output R-C buffer
注意 :
1. 當負載電流為 10A 時 , 必須加裝散熱器 ; 為 40A 及以上時 , 必須加風扇強冷或水冷 .
2. 使用感性負載時 , 務必在輸出端并接一個壓敏電阻 , 取值為負載電壓的 1.6-1.9 倍 .
Notice:
1. If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
2. When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

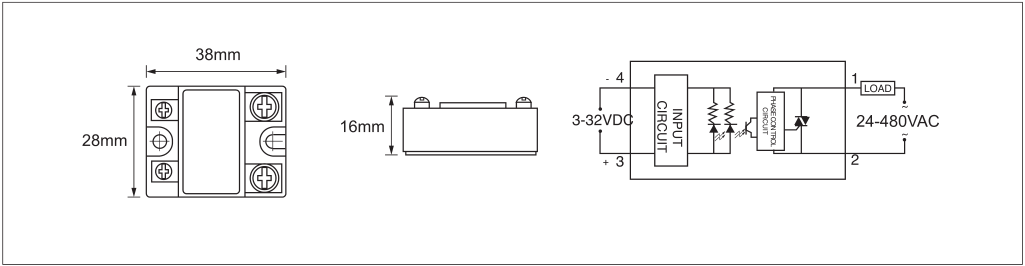

◎ 安裝尺寸及接線圖 Installation dimensions and wiring diagram
