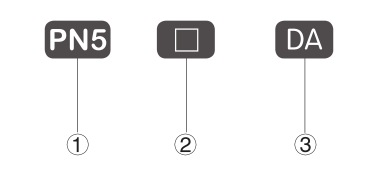

◎ 型號含義 Type meaning

② 5A,10A

③ 直流控交流 DC-AC (DC input-AC output)

◎ 產品概述 Product overview

◆ 五組輸入，五組輸出

◆ 額定電流：5A,10Amps

◆ 額定電壓：24-480VAC

◆ 控制電壓：3-32VDC

◆ 控制電流：≤ 10mA

◆ " 超低 " 的輸入電流

◆ 低輸出斷態漏電流

◆ 低輸出通態壓降

◆ 具有獨立五路 LED 燈輸出指示

◆ 包含標準輸出的 R-C 緩沖器

◆ 五組獨立通道，自由控制

◆ Five I/O channels

◆ Rated current: 5A,10Amps

◆ Rated voltage: 24-480VAC

◆ Control voltage: 3-32VDC

◆ Control current: ≤ 10mA

◆ "Ultra low" input current

◆ Low output off-state leakage current

◆ Low output on-state voltage drop

◆ Five separate LED output states

◆ Standard output R-C buffer

◆ Each channel is independent of other channels, and all channels are freely controllable

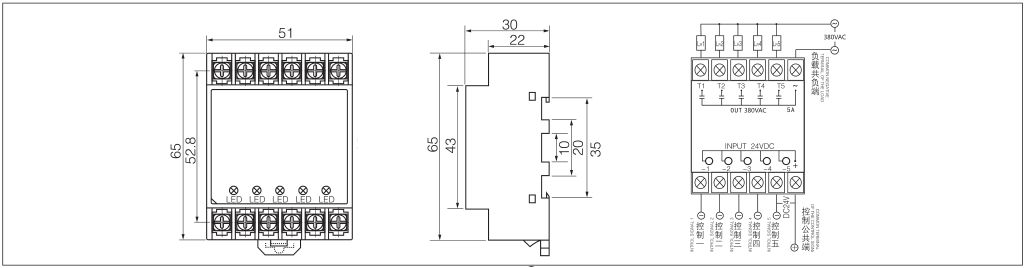

◎ 安裝尺寸及接線圖 Installation dimensions and wiring diagram
